Bench Measurements

Aeroel laser benches are available in various model and size with single or dual axis measurement. A wide range of accessories and fixtures are available to allow the measurement of a wide range of pieces and products, with different shape and size, such as:

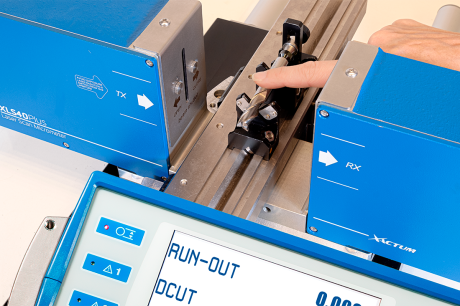

• Mechanical components like small shafts, parts machined by lathes or grinders, rubber rolls, hard metal tools and blanks, etc
• Wires and cables like drawn wire, ferrous and non ferrous, electric cable enameled wire
• Extruded products like plastic tubes, rods
• Transparent products like optical fibers, medical tube, glass tubes, etc.
• Die hole

The various systems can measure diameter and ovality, run out, edge position, gap between parts, taper, throats and peaks, cutting diameter, etc.
The benchtop systems allow measurable diameters range from 0,02 mm up to 78 mm, with a resolution up to 0.1 µm

They check tolerances by comparing the actual dimensions to the programmed limits. Depending on the model, measurement reports are printed out and simple and effective statistics are performed on measured data.

Ultra high accuracy: up to ± 0.02 µm repeatability (T = 1s, ± 2 σ)

Objective and repeatable results: high gauging accuracy is obtained regardless of skill or experience of operators.

Saving of skilled labour: being quick and simple to use, Aeroel systems drastically reduce inspection time while improving measurement capability.

Quality certification: measurement data are immediately printed and recorded for further analysis; you will no longer need to fill the time-wasting, handwritten control charts.

Permanent accuracy: a patented self calibration device guarantees drift free operation and allows different diameters be measured without re-mastering.

3 year warranty: the solid state laser diode guarantees reliability and very long operational life.
