It's ideal for the off-line, manual measurement of a wide range of ground or turned parts, with different shape and size, such as electric motor shafts, ground or turned parts, gage pins, piston pins and hydraulic components.
BENEFITS
No error due to the hysteresis (inversion error) which is typical of all dial indicator gauges
Using no PC, it’s ideal to be placed in the workshop, close to the machine
Contactless measurement: no part damage or scratches
Objective and highly reproducible results: no matter about the operator’s skill
Extremely easy and quick to use: reduces inspection time and improves measurement capability
Highly flexible: different components and sizes can be measured without gauge re-mastering
Ultra accurate: it measures to an accuracy that before you had only in a metrology room, using time consuming, expensive equipment and specialized personnel
VERSIONS
Available Meclab Systems

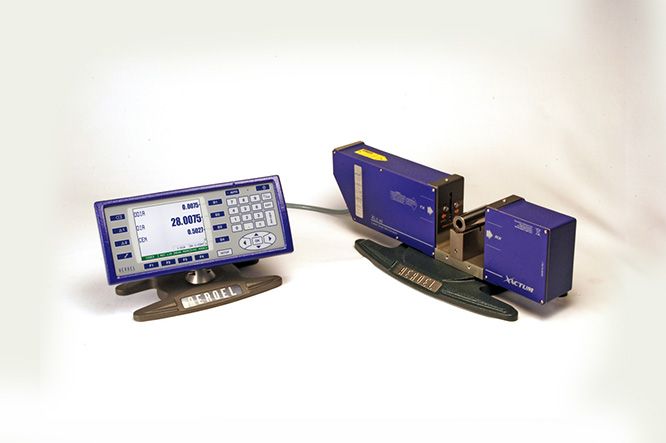

MECLAB.X40
Measuring Field: 40 mm Measurable Diameters: from 0.06 to 38 mm Repeatability: up to ± 0.1 µm

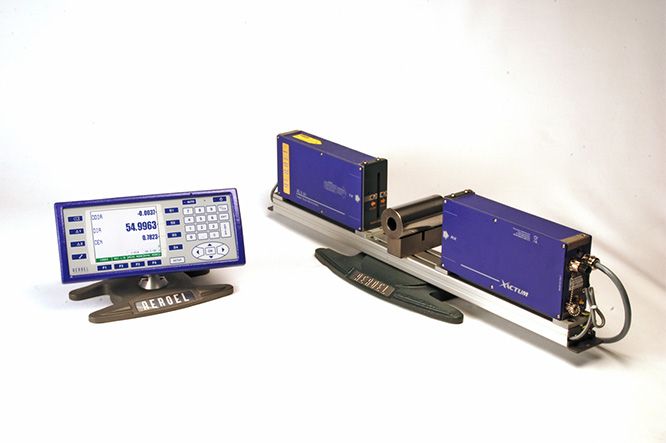

MECLAB.X80
Measuring Field: 80 mm Measurable Diameters: from 0.75 to 78 mm Repeatability:up to ± 0.3 µm
