DESCRIPTION
Marposs has the know-how to supply customised solutions for manual and automatic gauging stations, including handling systems for complete turnkey solutions, designed for the automotive industry and the braking system, which require an extremely high level of quality in the design and construction stage.

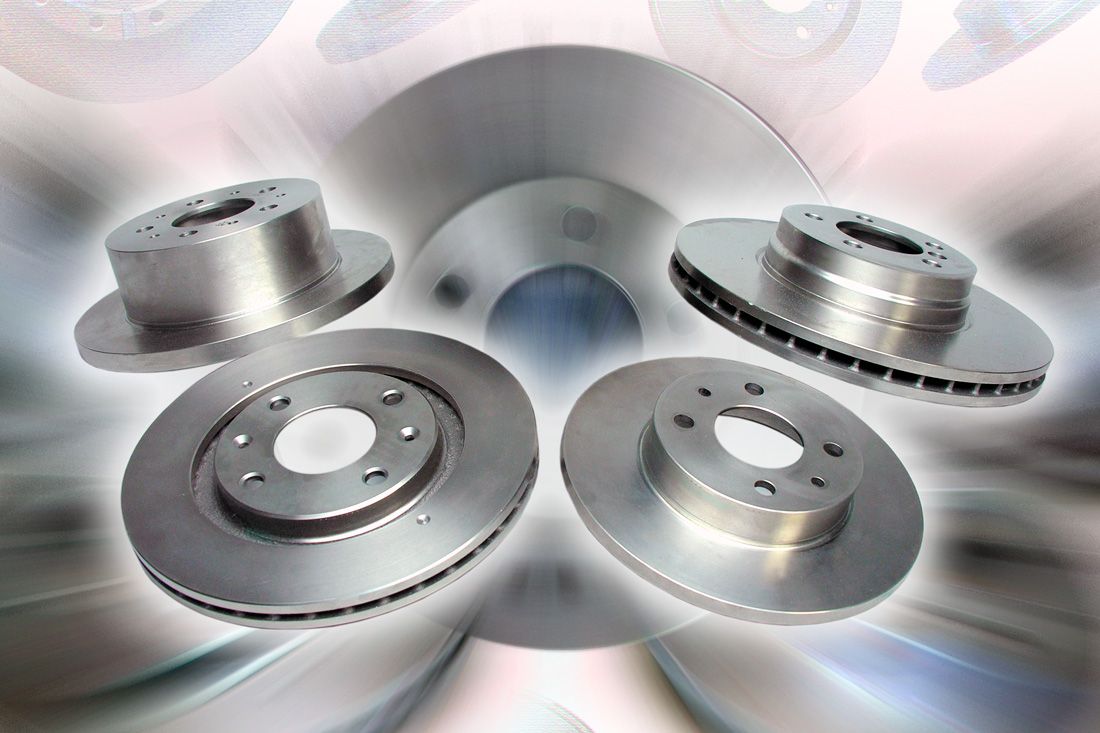

The parts involved in the braking system are the brake discs, drums and hubs.
Marposs supplies gauges designed for accurate inspections of dimensional and shape parameters, as specified by part print tolerances, including the verification that parts are free of cracks, porosity and blow holes, guaranteeing suitability for assembly.
The measurement results, as well as the statistical analysis to qualify production lots, are processed by the Marposs E9066™ industrial PC, equipped with Quick SPC™ software.
Semi-automatic stations for inspecting automotive disk brakes
Manual loading and retooling
- M50 multi-dimensional basic application
- M63 multi-dimensional application with easy retooling via the probe support mechanical slides, positioned with a micrometric precision system
- M63ND material integrity inspection ND application with easy retooling via the probe support mechanical slides, positioned with a micrometric precision system
Automatic stations for automotive disk brake inspection.
Robot or gantry part handling.
Dimensional and ND automatic gauging machines for inspecting automotive disc brakes.
Part loading with infeed and outfeed conveyor and integrated scrap rejection.
Manual and automatic retooling according to part type.
M100
M100ND
BENEFITS
- Excellent quality/price ratio, guaranteed by a complete industrialisation
- Extremely fast cycle times
- The gauge is designed by taking into account the requirements for its positioning in any workshop environment.
- Extreme long-term reliability
TECH SPECS
To find the best quality/price ratio together, all technical specifications, such as metrological and dimensional performance, are agreed with the customer during the technical and sales negotiations.
