Battery Tray And Cover

The main components of the battery pack housing, frame, tray and cover, represent very critical parts of the battery system, due to the multiple functions they are called to perform.

On the one hand, they must guarantee the possibility to integrate the pack into the car body, ensuring maximum structural resistance and mechanical protection to the battery cells, but with the lowest possible weight.

On the other hand, they must ensure the perfect sealing of the pack, protecting the cells from water, humidity and external contaminants.

Enter our Virtual Showroom for E-Mobility

Battery tray and cover
DESCRIPTION

Depending on their manufacturing process, Marposs can provide a wide range of products and customized applications dedicated to their process control and quality check:

  1. Thermal process monitoring for die-casted components (TTV)
  2. Process monitoring during Friction Stir Welding (FSW) operations, for welded aluminum profiles
  3. Post process inspection of the welding quality, for welded aluminum profiles
  4. Gauging and process monitoring during the machining operations
  5. Hard gauging and mechanical fixtures for quality control
  6. Optical gauges for dimensional check and visual inspection of local defects
  7. Helium Leak testing by sniffing method
  8. Helium Leak testing in accumulation chamber
  9. Air Leak Testing in pressure decay and mass flow
Download

BROCHURES AND MANUALS

Brochure
English Quality control in battery production: (5.32MB)

Applications

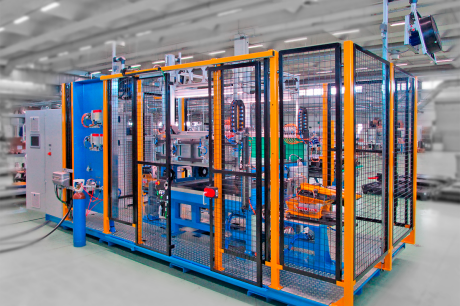

Leak testing of battery tray with helium in accumulation chamber Details

Leak Testing Of Battery Tray With Helium In Accumulation Chamber

Leak testing is a fundamental operation in the production process of the battery pack and its components such as tray, frame, housing, cover. Due t...

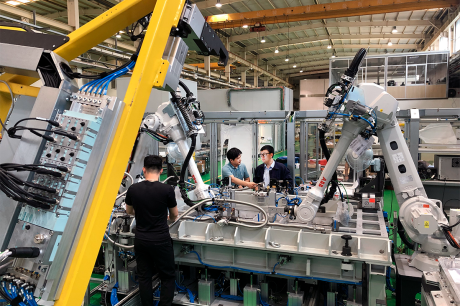

Leak testing of battery tray with sniffing system Details

Leak Testing Of Battery Tray With Sniffing System

Leak testing is a fundamental operation in the production process of the battery pack and its components such as tray, frame, housing, cover. Due t...

leak and flow testers Details

Leak and Flow Testers

During the whole production and assembly processes, planning leak testing of components allows the immediate detection of any defective part that w...

Monitoring solutions for die casting processes Details

Monitoring Solutions for light alloy casting processes

Aluminium plays a decisive role in the automotive sector, where weight reduction, and therefore cost savings, are paramount. Over the last decade, ...

Go Nogo Gauges Details

Go Nogo Gauges

Go - No Go gauges are manual mechanical measuring tools used in production lines to guarantee the machining has taken place and it has been perform...
