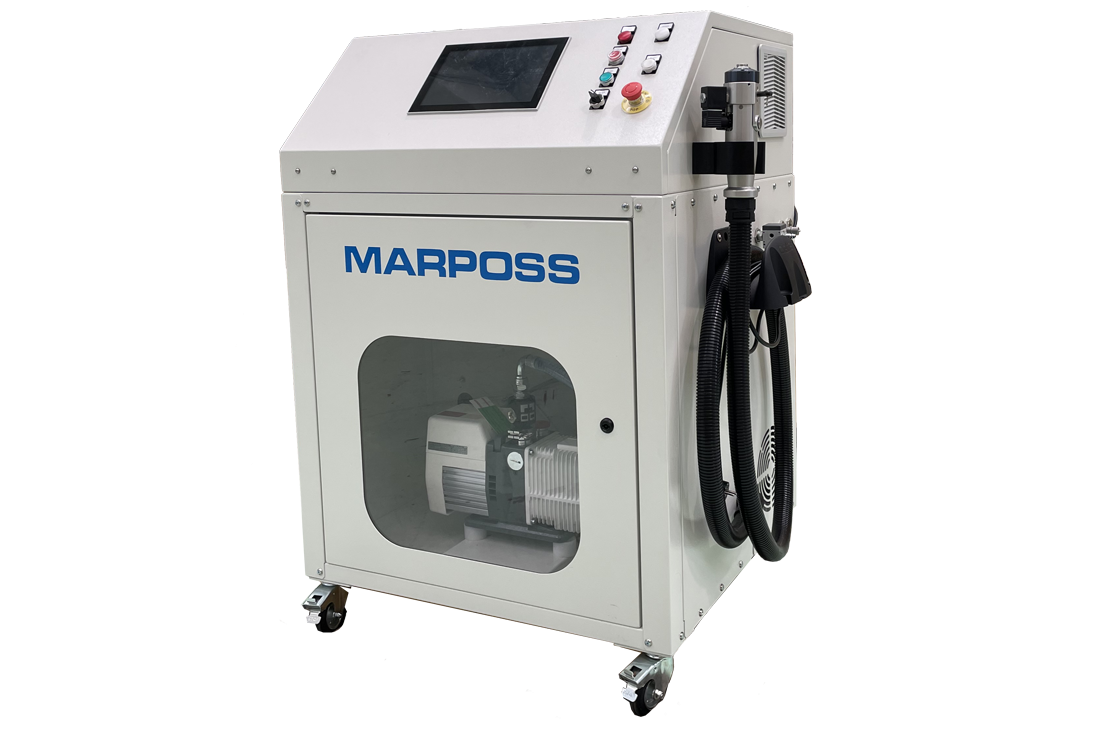

Refrigerant Charging Unit
Equipped with a large colour touch screen, it can be connected to our service centre for remote assistance. It is available for both standard and flammable gases with ATEX certification and in three different configurations. The metering device is the double effect piston P50D, which guarantees high accuracy for small charges, while the turbine or mass metering device is optionally available for high filling speeds.
Choose the optimal combination of filler head and metering device to achieve your desired filling accuracy and charging speed. Performance will vary depending on the specific filler head and metering device pairing.

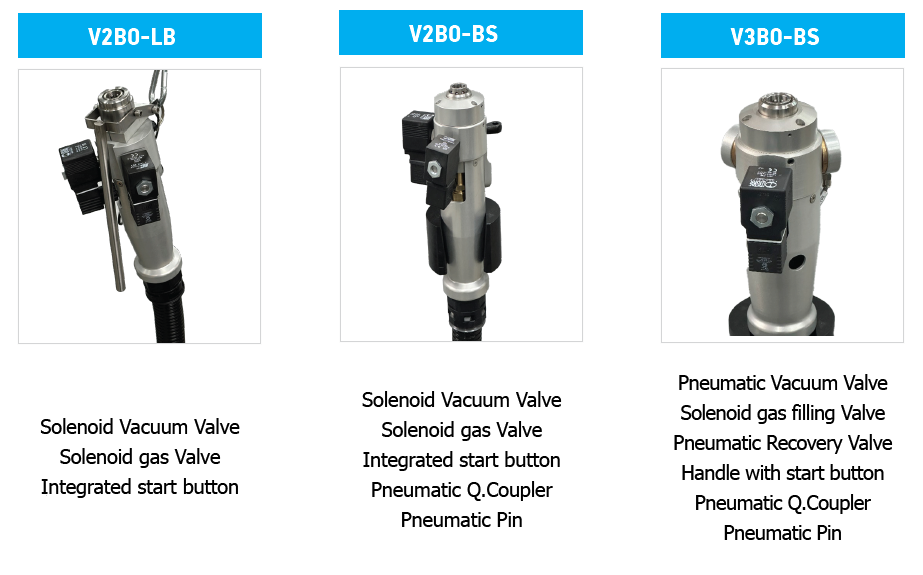

Three possible filling heads are available, each with start button with LED, vacuum & gas valve; V2BO-LB is the basic solution, while optional V2BO-BS with pneumatic Q.C. and pin drive or V3BO-BS with recovery valve that allow the recovery of the dead space in order to achieve zero release into the atmosphere at shut-off.
BROCHURES AND MANUALS
| フライヤー | |
|---|---|
| 英語 |
REFRIGERANT CHARGING UNIT: (968.95kB)
|
