Optical Fibers Accessories For Chromatic Confocal Set-Up
E50 SERIES
E50 SERIES are part of STIL CHROMAPOINT SENSORS.
All optical fibers are passive components, Silica graded index fibers with 50µm core, E2000/APC connector for connection with STIL controller and FC/APC connector for connection with STIL optical sensor head.
E50 Optical Fibers are made up of different models to be adapted in Labs in standard or in Industrial plants with specific protection.

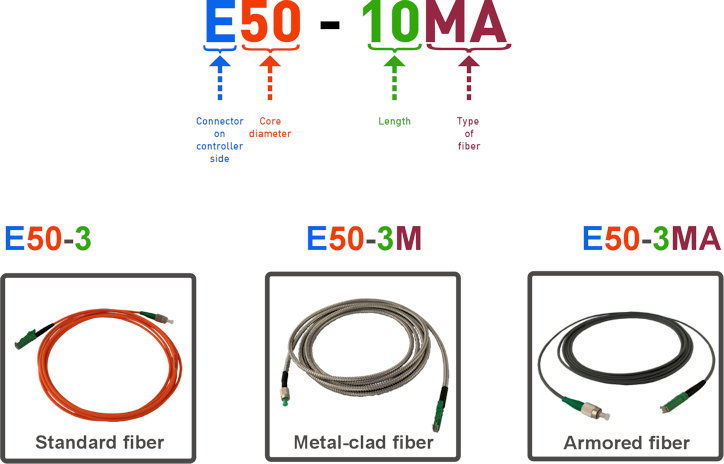

Three types of protection are available:
- Standard fiber : with plastic protection. Best fit for the majority of applications.
- Metal-clad fiber : standard fiber with an additional metal clad. Best solution for hard environments.
- Armored fiber : the metal armor consists in a spiral steel tape used to house and protect the fibers, located between the Silica fiber and the plastic protection. The armored fibers, compared to the metal-clad optical fibers, present a smaller diameter and keep a maximum protection of the core, with a high resistance to tension and pressure, even higher than with a metal-clad version. Armored fibers remain weaker than metal-clad versions against excessive bending.
• Passive Components
• Large Choice of Lengths
• Standard or Protected for any environment
• Easy to integrate
• Works with every CHROMAPOINT Controllers & Optical Heads
• High Signal To Noise Ratio
|
Fiber type |
External diameter |
Minimum Bending Radius |
|
|
Static |
Dynamic |
||
|
Standard |
2,8 mm |
25 mm |
40 mm |
|
Metal Clad |
5 - 6,2 mm |
40 mm |
40 mm |
|
Armored |
3 mm |
30 mm |
60 mm |
|
Fiber type |
E50-3 |
E50-5 |
E50-10 |
E50-15 |
E50-3M |
E50-5M |
E50-10M |
|
Length (m) |
3 |
5 |
10 |
15 |
3 |
5 |
10 |
|
External Diameter (mm) |
2,8 |
2,8 |
2,8 |
2,8 |
5 - 6.2 |
5 - 6.2 |
5 - 6.2 |
|
Weight (g) |
30 |
45 |
75 |
105 |
<140 |
<280 |
<470 |
|
Fiber type |
E50-15M |
E50-20M |
E50-25M |
E50-3MA |
E50-5MA |
E50-10MA |
|
Length (m) |
15 |
20 |
25 |
3 |
5 |
10 |
|
External Diameter (mm) |
5 - 6.2 |
5 - 6.2 |
5 - 6.2 |
3 |
3 |
3 |
|
Weight (g) |
<680 |
<850 |
<1220 |
40 |
60 |
105 |
The STIL chromatic confocal set-up composed of E50 SERIES are suitable for various applications in many application sectors:
- Automotive glass
- Glass containers and packaging industry
- Electronics Industry (PCB)
- Semiconductor industry (silicon wafer)
- Applications for measuring roll-to-roll, transparent and non-transparent films (e.g. EV battery covers)
- CCC industry
- Electrical Vehicle Industry (Batteries)
- Robotics
- Micromechanics
- Medical & MicroFuidic
- Aviation
- Watches
E50 SERIES are available in 3 types of protection: standard, metal shielded and armored.
For each type of protection, several lengths are available in standard and in custom.
For specific demands, STIL MARPOSS Local vendor will support.
