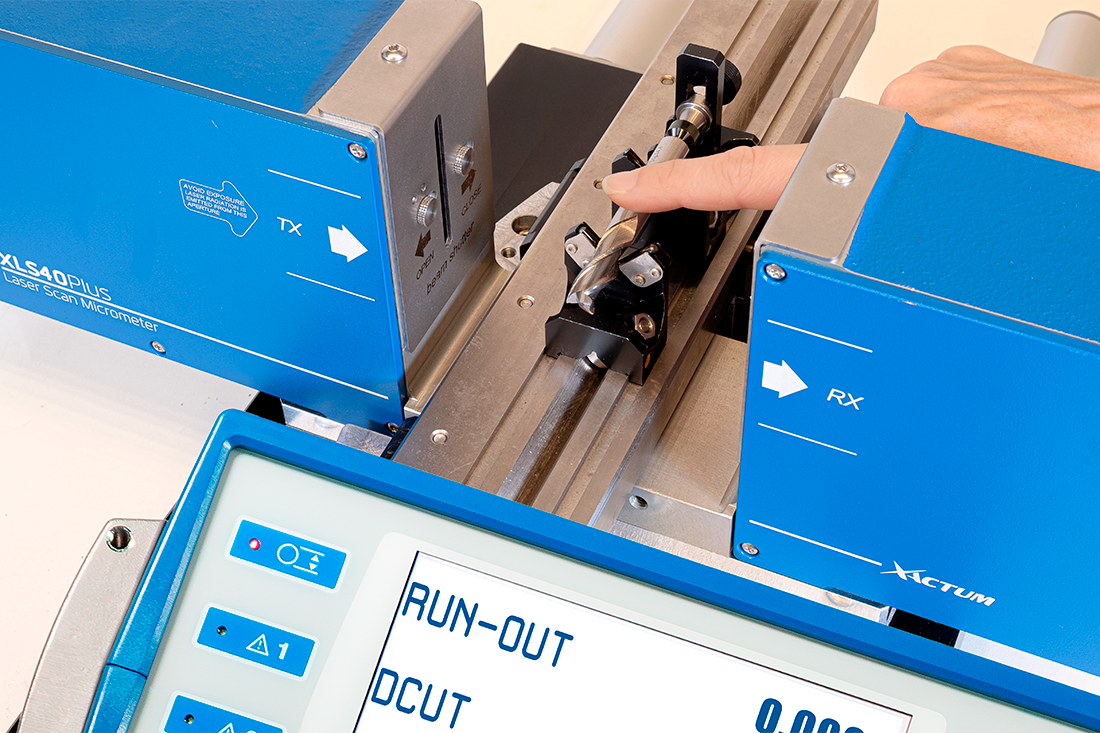

The laser Micrometer to check full carbide tools and blanks
MECLAB TOOLS
MECLAB TOOL is a family of laser instruments to check full carbide tools and blanks, perfect to measure tools with odd or even cutting edges. Ideal for off-line inspection and quality control.
MECLAB.T40 is a high precision laser instrument for quick and simple diameter measurements of hard metal blanks and full carbide cutting tools, odd or even edges.
It’ s ideal for the off-line checking of
drill bits
end mills
reamers
cutting tools
优势
It can be also used to check the diameter and the ovality of hard metal blanks, ground pins or cylinders
It checks tolerances by comparing the actual dimensions to the programmed limits.
Measurement reports are printed out.
Simple and effective statistics are performed on measured data.
All results are stored in the memory and can be down-loaded to a remote Computer.
版本
Available Meclab T Systems
MECLAB.T40 - Manual Version
Measuring Field: 40 mm Measurable Diameters: from 0.06 to 38 mm Repeatability: up to ± 0.07 µm
MECLAB.T40 - Automatic Version
Measuring Field: 40 mm Measurable Diameters: from 0.06 to 38 mm Repeatability: up to ± 0.07 µm
