Single horizontal scanning sensor
MESYS UNISENSE
Introducing an advanced ultrasonic scanning sensor designed to provide precision measurements on web materials up to 5.4 metres wide. Whether in wet or dry processes, this innovative sensor provides a simple but highly accurate solution for monitoring and controlling the basis weight of your materials.
What sets this scanner apart is its patented automatic calibration feature, which ensures consistent and reliable performance with minimal manual intervention. Additionally, it allows for seamless synchronization between multiple scanner systems, enabling precise measurements at the same point across different scanners. With its combination of simplicity and advanced functionality, this ultrasonic sensor scanner is the perfect choice for optimizing your web handling and production processes.
Advanced Measurement for Optimal Performance
Marposs O-shaped horizontal scanning sensor is designed to deliver precise measurements for web materials with widths up to 5.4 meters. Utilizing advanced ultrasonic technology, this sensor provides accurate basis weight measurements for both wet and dry processes, ensuring consistent quality and performance.
Patented Automatic Calibration
This innovative technology ensures that your sensor is always perfectly calibrated, gives you consistent and reliable data without the worry of manual adjustments.
Seamless Synchronization for Multi-Scanner Systems
Our sensor systeam is designed to work in harmony with multiple scanners. With built-in synchronization capabilities, you can measure the same spot across different scanners, ensuring uniformity and accuracy in your production process. This feature is ideal for complex systems requiring precise coordination and measurement consistency.
| Non contact, non destructive, non radiation |
| Simple interface via OPC/UA interface |
| Basis weight range : 0 – 4000 g/m² |
| Foil Width: 250 - 5400mm |
| Sensor spot diameter: 5mm |
| Resolution : down to 0,01 g/m² |
| Static Accuracy: ± 0.04 % (2σ) * |
| Power supply typ: 220V AC |
| Possible ATEX version: Yes |
| CE Compliance EN 2006/42: Yes |

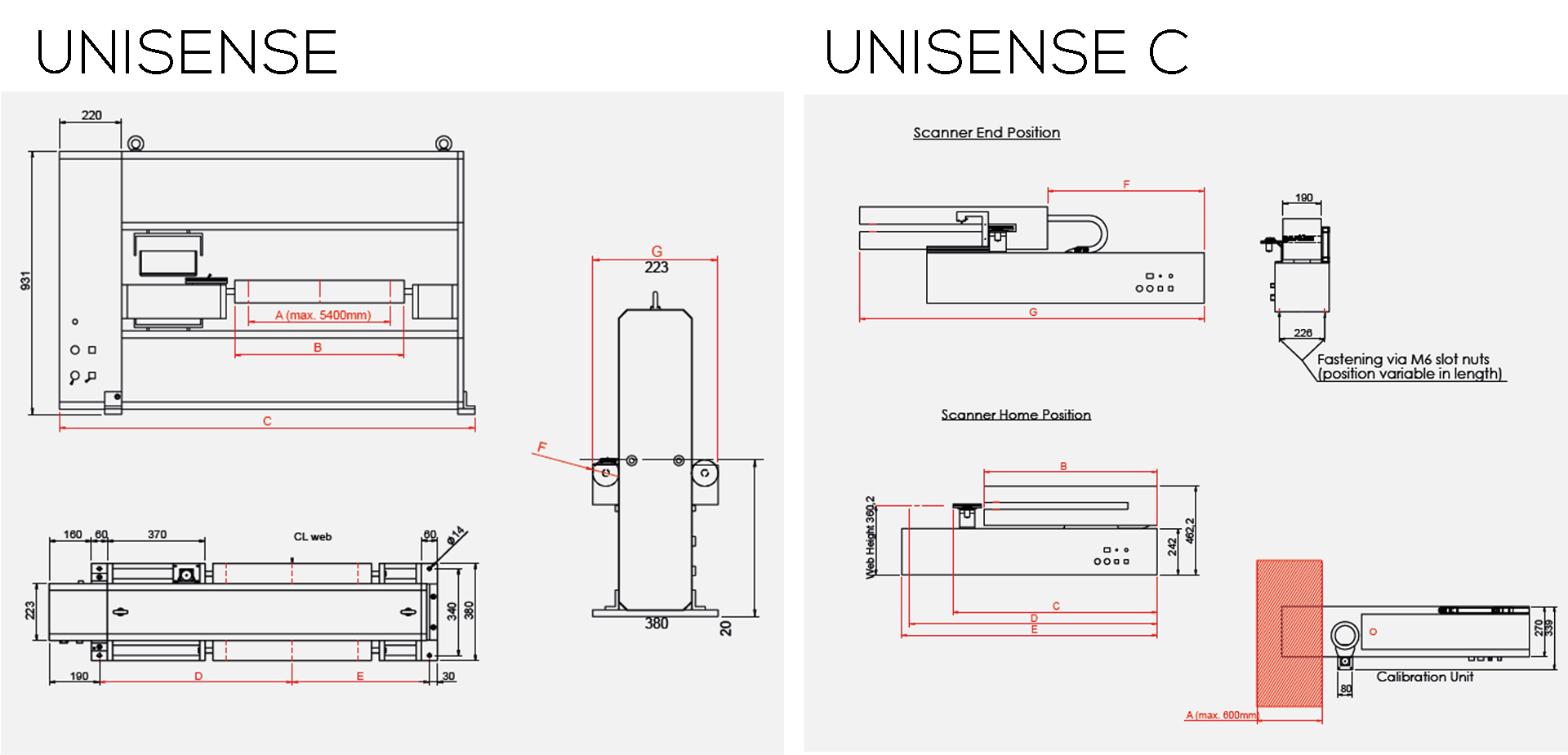

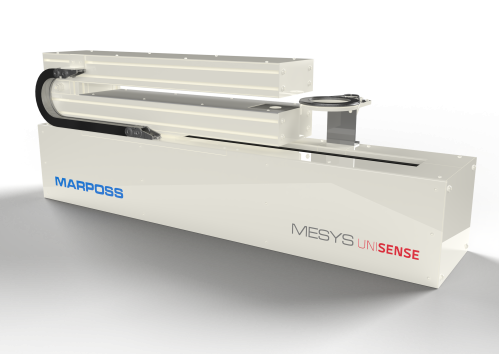

SCANNING SYSTEM “C” SHAPED FRAME
C-Shaped scanning system optimized for applications with spatial constraints. Its compact design renders it particularly suitable for environments where space is limited, offering versatility without compromising efficiency. This system can mount up to fivedistinct basis weight sensors, improving its capacity and the percentage of the web material measured.
SINGLE HORIZONTAL SCANNING SENSOR “O” – SHAPED FRAME
A single O-shaped horizontal scanning sensor. Ideal for web widths of up to 5.4 meters. This ultrasonic sensor scanner is the simplest but accurate way to
• measure your web materials basis weight for both wet and dry process
• have patented automatic calibration
• measure syncronistation between two or more scanner systems (same spot)
